Hendrickson Trailer Suspension Air Spring Replaces W01-358-8709 Firestone 1R13-159 Goodyear Air Bags
Part #: 75S1VA8709
Condition: New
All product eligible for a c
ore rebate will come with a pre-paid UPS shipping label located on outside of product box in the packing slip pouch. Simply place old cores in box and put provided shipping label on the box and drop off to a UPS shipping center.
Upon receipt of your cores a refund will be issued to the credit card or PayPal account used to purchase product. Core returns are typically processed within 5-7 business days after receipt of core.
Availability:
In Stock
Ships Within: 24 hours
Please select your vehicle
from the above to check compatibility
from the above to check compatibility
Price: $102.23
This item qualifies for FREE UPS Ground Shipping
Description
|
Shipping details
We are happy to offer free UPS ground shipping on all orders to the lower 48 States.
Unfortunately since these parts are quite heavy and large we cannot offer free shipping to Puerto Rico, Hawaii nor Alaska.
(We do offer shipping to these areas, but it will be based upon UPS quotations. Please feel free to contact us directly.)
We do not ship to P.O. Boxes nor APO's as UPS will not deliver to these locations.
If you would prefer a different or expedited shipping option, please contact us and we will be glad to work around your needs.
Business hours are Monday to Friday 9am to 5pm EST.
SHIPPING POLICIES
We ship UPS Ground by default
Same-day shipping will be provided for orders placed before 2PM EST
Orders after 2PM EST will be shipped the next business day
Orders on the weekend will be shipped the next business day
Orders on a holiday will be shipped the next business day
Tracking will be provided immediately to the email provided in your order
Signature required is mandatory on any order over $400
Signature required may be requested on orders below $400
UPS DOES NOT DELIVER ON SATURDAY NOR SUNDAY
SHIPMENT TRANSIT TIMES
Please refer to this chart for estimated transit times. We are shipping out of the warehouse in Boynton Beach, Florida zip code 33426
Commercial Truck Air Spring Replacement
Order Includes: 1 Commercial Trailer Air Spring

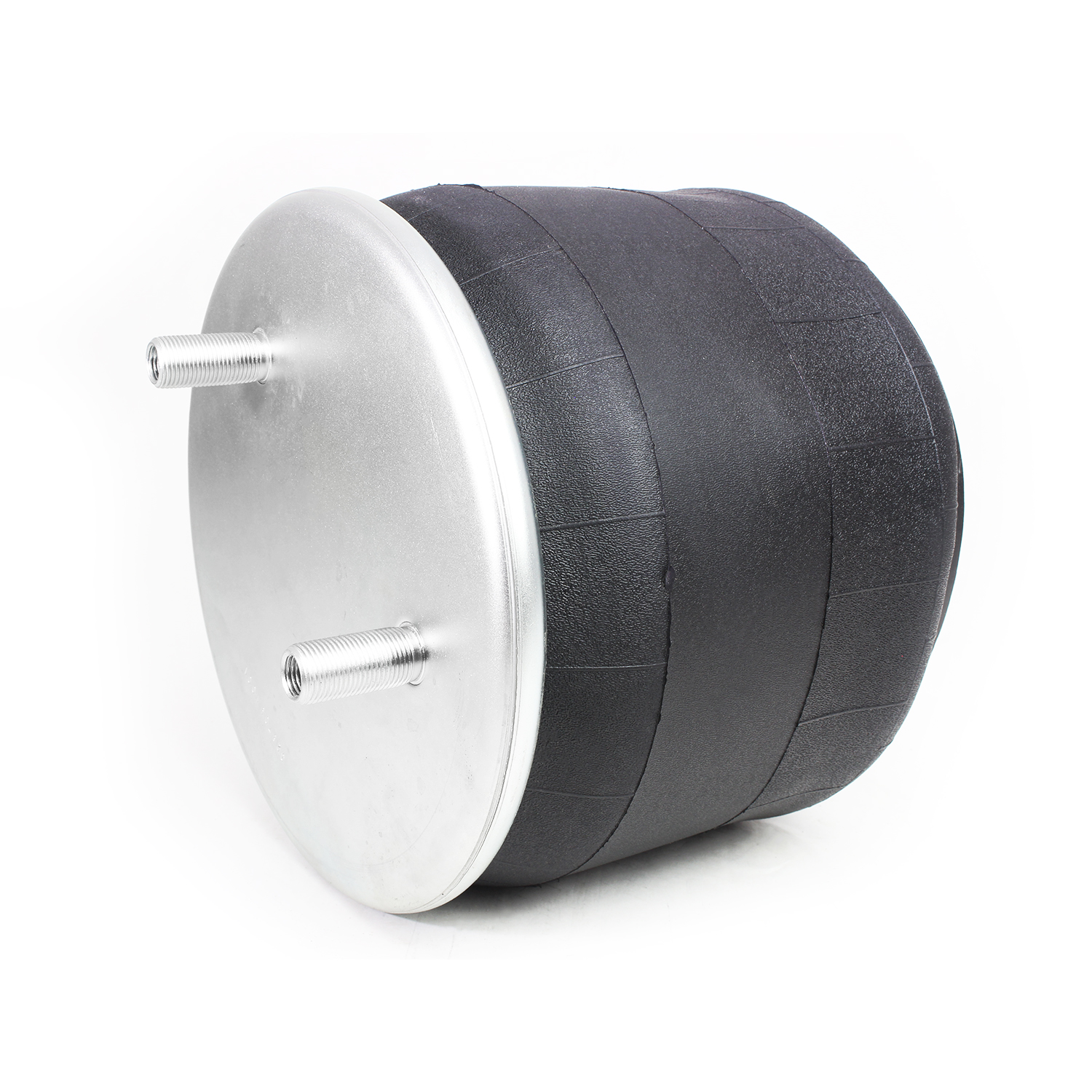

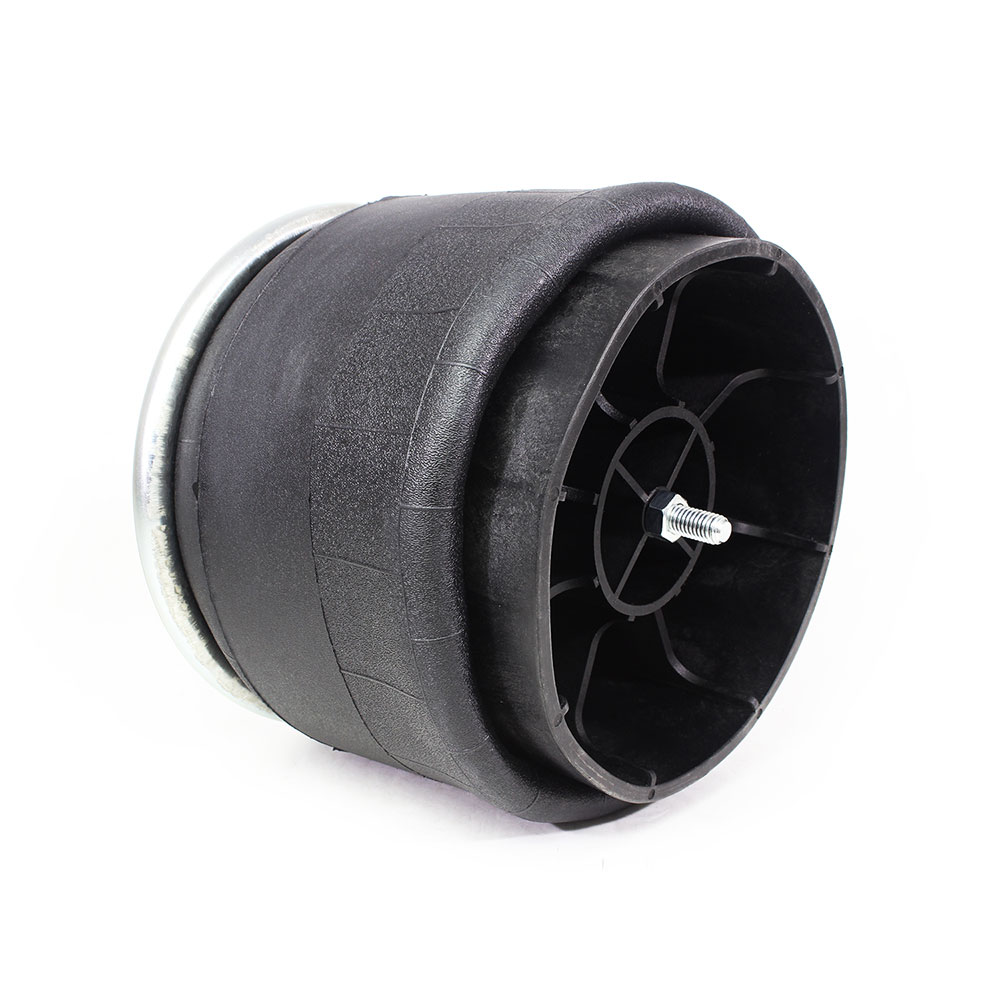

Suncore's reversible sleeve air bag fits Hendrickson S-21800 & C-21800 Trailers. The piston and bead plate are designed to OEM specifications to ensure precise fit. The Top plate diameter is 10.3"" and the bottom plate is 8.8"" with 2 combination studs and air fittings on the top plate and one piston bolt on the bottom of the bellows that also serves as the mounting stud.
Suncore's rolling lobe truck spring replacements can change the spring rate to match the load it supports using air pressure, and can ""squat"" for loading and unloading. Suncore's truck spring replacement for Hendrickson 21800 Trucks with INTRAAX suspension (AA230) installs with ease and will immediately eliminate resistance from poorly functioning air springs.
Interchange:
Hendrickson: S-21800 & C-21800
Goodyear: 1R13-159
Firestone: W01-358-8709 (Supercedes W01-358-8751)
Contitech: 1010.5-15P460; 1010.5-15P480
Fits Hendrickson Trailers:
Hendrickson Trailer Van Traax: HKA-180
Hendrickson Trailer Intraax Series: AA230T
Click Here for Set of 2 "8709" Air Springs
Interchange:
Hendrickson: S-21800 & C-21800
Goodyear: 1R13-159
Firestone: W01-358-8709 (Supercedes W01-358-8751)
Contitech: 1010.5-15P460; 1010.5-15P480
Fits Hendrickson Trailers:
Hendrickson Trailer Van Traax: HKA-180
Hendrickson Trailer Intraax Series: AA230T
Click Here for Set of 2 "8709" Air Springs
Hendrickson Trailer Suspension Air Spring Replaces W01-358-8709 Firestone 1R13-159 Goodyear Air Bags fits the following vehicle(s):
BLOG: Did you know
Suncore Industries now carries reversible sleeve style truck, trailer and cabin air spring assemblies for commercial vehicles. These air springs are ready to install into your Hendrickson, Peterbilt, Kenworth or Freightliner suspension systems. Available in singles or pairs, you can get your payload up and running in no time.
×
